KNIGHT

Unlike most common hub-motor driven electric bikes with throttle, the Knight Rider keeps almost all features of a regular mountain bike. Driven by Mid-drive motor, shifting gear still works perfect with / without PAS (pedal assist system).

Frame:              6061 Aluminum Alloy
Fork:                 Aluminum Alloy / 120mm Travel / Lockout
Size:                  27.5* 17"
Color:               Titanium Gray

Motor:              Star Union CM2502 Mid-drive Motor 36V 250W 95nm
Battery:             Lithium Battery 36V/10.4ah - Removable
Meters:             Star Union Colored OLED LCD Screen W/ Buttons (IP65)
Lights:              Front LED 36V /Rear LED 5v (battery)
Sensor:             Torque and Cadence Sensors

Brakes:             Hydraulic Disc Brake
Rotors:             Floating - Six Bolts Front 180mm & Rear 160mm
Lever:               Aluminum Alloy
Shifter:             L-TWOO SL -V5010 (Window Display)
Derailleur:        L-TWOO RD-V5010 Shadow Change
Flywheel:          Cassette 11-36T
Chain:               KMC X10
Crankset:          38T Aluminum Alloy Crankset 170mm Black (W/Alloy Cover)
Rim:                 Aluminum Alloy Double Layers
Tire:                  27.5*2.80 30-45 Psi

Power-Assist:   Five-speeds Adjustments
Range:             50-80km (According to Mode)
Top Speed:      25km
Charger:          42V/2A, DC2.1
Handlebar:      Alu 31.8/22.2mm Width 720mm
Stem:               Alu Forged 28.6/31.8mm Length 45mm
Seat Post:        Alu 31.8/400mm
Seat:                PU Leather 270*140mm Rails W/Scale
Pedals:             Alu/Black Dual Bearing

     Quietest Motor

      Star Union CM2502, max torque 100N.m at rating speed  of 90 rpm, is one of the quietest mid-drive      motor in the market.

Front Suspension with remote lock

With help of a 120mm travel suspension, no terrain can stop your step to conquer. To gain an easy and comfort ride, you can stop suspension by pressing the remote lock at the handle bar. Enjoy your multi terrain travel.

     Colored LCD Display

     3.5” screen TFT LCD Display shows your instantaneous speed, power, distance, pedal assist level, and any other information you need to know. Big and bright screen minimized the hazards by decreasing the time of watching down the screen in riding.

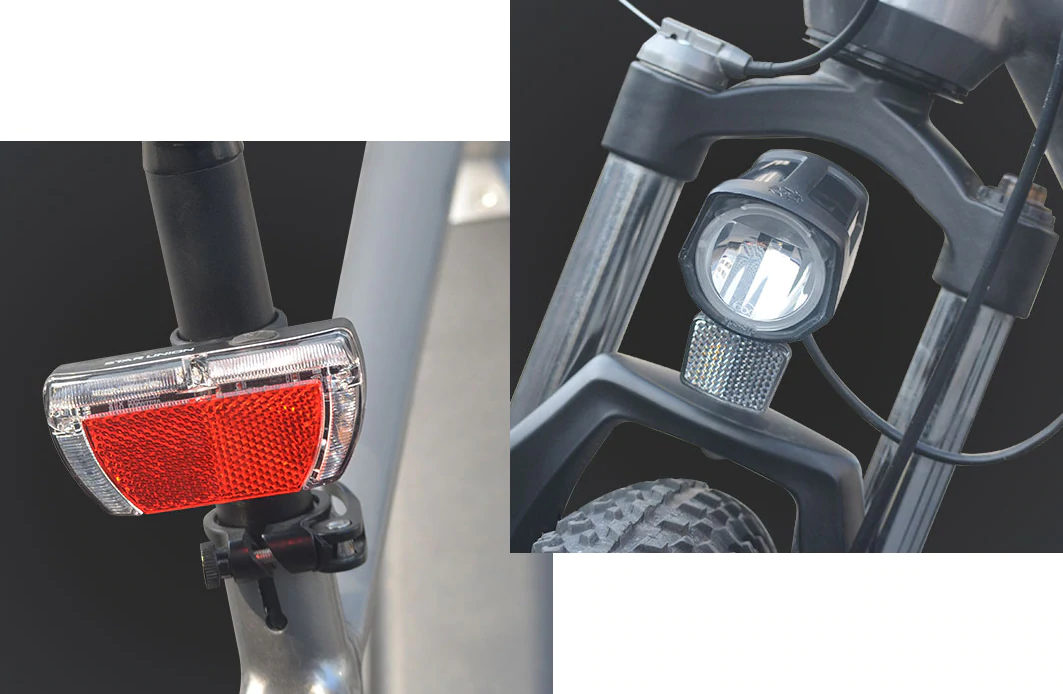

Headlight and Tail light

The front and rear lights pre-installed onto the bike make sure you see well and you are well seen on the road.
